Lighting fixtures can be mounted on existing WPS poles or, for an additional charge, on
WPS poles installed expressly for lighting. The WPS
lease program includes your automatically controlled fixture, maintenance and the electricity to operate it, all at one
economical monthly rate.
Available lighting styles:
For more information on outdoor lighting from WPS,
please call 877-444-0888.
Acorn
The Acorn street lamp was popular in metropolitan areas during the early
20th century. Now a modern adaptation of this Acorn design captures the
essence of a bygone era while incorporating today's most advanced
technology. This high-quality lamp blends well with many streetscapes and
styles of architecture.
Applications
Roadways, parks, residential areas
Specifications
- Textured polycarbonate globe in 8" or 9" design (optional internal Type
III refractor available)
- Photocontrol receptacle available

Light Source
- 70-watt high-pressure sodium
- 100-watt high-pressure sodium
Back to top
Cobra
This fixture provides an oval-shaped light pattern that is ideal for improving
the safety and security of residential streets, parking lots and roadways.
Specifications
- Die-cast aluminum housing with standard gray or jet black electrocoat paint finish
- ALGLAS finish on reflector
- Filtered optics
- No-tool photoelectric receptacle
- Full cut-off standard
- Type III

Light source
- 400-watt high-pressure sodium
Back to top
LED Cobra
LED lighting has improved color rendering for security cameras. Light output is more easily captured and directed toward the roadway. LEDs provide higher light output even at low temperatures for increased reliability.
Specifications
- Available in black or gray
- Manufactured with fully recycled aluminum castings and extrusions
- Excellent lighting quality and uniformity offers a whiter color rendering
Light source
- 100-watt equivalent LED
- 150-watt equivalent LED
- 250-watt equivalent LED
Back to top
Dorchester
The Dorchester® Luminaire reflects the elegant Victorian era of the late 19th
century. Graceful lines and an interesting design make this lamp a popular choice
for historical districts. And while it helps us turn back time to the Victorian age,
the Dorchester incorporates the most efficient lighting technology available in the
21st century.
Applications
Roadways, parks, residential areas
Specifications
- Spun aluminum top cap, in the form of a vent
- Cast aluminum filigree ring holds translucent acrylic dome

Light source
- 70-watt high-pressure sodium
- 100-watt high-pressure sodium
Back to top

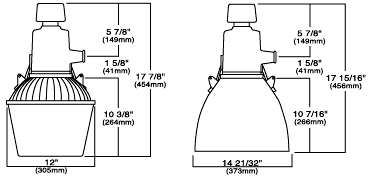

Dusk-to-Dawn security light
The Dusk-to-Dawn security light has a 360-degree light pattern that provides
security advantages at a low cost. It's an ideal security light option for rural areas.
In fact, it is the light traditionally used in these areas.
Specifications
- Standard complete unit pack
- Full cut-off shield standard

Light source
- 100-watt high-pressure sodium
- 150-watt high-pressure sodium
Back to top
Lexington
The Lexington™ Luminaire adds a distinctive accent while providing excellent
illumination to walkways, shopping malls and other outdoor areas. It comes
with a maintenance-free guarantee for 20 years.
Applications
Residential areas, walkways, shopping centers, malls
Specifications
- Acrylic or polycarbonate refractors
- UL1572 Listed SUITABLE FOR WET LOCATIONS and CSA certified when polycarbonate refractor is used and "U" option is chosen
- No-tool photoelectric receptacle

Light source
- 100-watt high-pressure sodium
- 150-watt high-pressure sodium
Back to top
New Haven
The New Haven light evokes a feeling of charm and tradition in any outdoor
setting, with its old-fashioned New England style. Yet it also meets the demanding
challenge of providing today's features along with yesterday's nostalgia. For a
charming post-top light, choose the New Haven.
Applications
Roadways, parks, residential areas
Specifications
- Completely removable cover without the use of tools
- Stainless steel, no-tool entry latch for relamping and easy ballast power
module access
- Injection-molded acrylic refractors available in Type III or Type V (optional glass or polycarbonate refractors available)
- Optional internal NEMA twist lock photocontrol receptacle available

Light source
- 70-watt high-pressure sodium
- 100-watt high-pressure sodium
Back to top
Ornamental lamp post
The ornate details in this lamp post reflect old-fashioned charm and
tradition. While its looks are elegant and delicate, this pole is manufactured
for superior strength and durability. The construction, coating and finish are
engineered to withstand extreme weather. Available in a 14' height.
Specifications
- Durable, proven composite construction
- 16-flute tapered design
- Distinctive ornamental decorative shroud
- Cost-saving direct embedded or traditional anchor base installation
- Guaranteed for exceptional service life
- Available in black
- Manufactured by Whatley

Back to top
Powerflood floodlight
The Powerflood projects a high concentration of light to a focused area, making it
ideal for business or parking lots. Floodlights can be configured in a variety of
ways to meet specific coverage needs such as on building facades and in shipping
yards and rail yards.
Specifications
- Die-cast aluminum housing with gray or black electrocoat paint finish
- Formed aluminum reflector with ALGLAS finish
- Enclosed, gasketed and activated-charcoal filtered optical
- Built-in "Sight-Track," quick aiming sight

Light source
- 250-watt high-pressure sodium
- 400-watt high-pressure sodium
- 350-watt metal halide
- 1,000-watt metal halide
Back to top
Westminster
The Westminster combines classic acorn beauty with superior photometric
performance. Its exceptional design offers roadway illumination and
uniformity that's superior to yesterday's best designs and sets a new standard
for decorative post-tops.
Applications
Streetscapes, roadways, parks
Specifications
- Globe is available in 9" high-efficiency polycarbonate or standard
acrylic design
- Cast aluminum housing and finial in black
- Photocontrol receptacle available

Light source
- 100-watt high-pressure sodium
- 150-watt high-pressure sodium
Back to top
Woodbridge
The Woodbridge Luminaire is a slightly contemporary lamp, although still
a nostalgic design. Decorative scrolls create a lantern look and appeal.
Applications
Residential areas, walkways, shopping centers, malls
Specifications
- UL1572 Listed SUITABLE FOR WET LOCATIONS and CSA Certified when polycarbonate
refractor is used and "U" option is chosen
- Decorative scrolls

Light source
- 100-watt high-pressure sodium
- 150-watt high-pressure sodium
Back to top
Photometrics

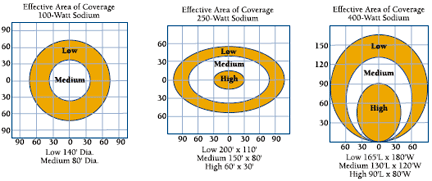

The photometric diagrams below outline the effective area of light coverage
for three main types of lighting systems. Understanding the different light
ranges and patterns that these systems provide is important in determining
the proper fixture and lighting layout.

Directional |
Cobra |
Flood |
Provides a circular light pattern |
Provides an oval-shaped light pattern and a long range of coverage |
Projects a strong beam of light in a forward, oval pattern |
Commercial parking lots, residential areas and parkways |
Residential streets, parking lots and roadways |
Parking lots, building security, building facade, shipping yards, rail yards |
Back to top
